Product parameters /
| Type | P2.5 Outdoor | | Type | P2.5 Outdoor |
Pixel Pitch (mm)
| 2.5 | | Cabinet Size(mm) | 1679×640 |
| Pixel Density | 160000 pix/㎡ | | Cabinet Display Resolution(Pix) | 256×640 |
LED Type
| SMD1921 | | Material | Aluminum profiles extruded |
| LED Wave Length (nm) | R:615-630/G:515-535/B:465-480 | | Cabinet Weight（Kg） | ≤28 |
| Luminous Intensity(mcd) | R:210-546/G:390-990/B:65-165 | | Power Supply | 5V 60A |
| Viewing Angle | W160°,H120° | | Voltage(V) | AC 100~220V |
| Brightness | ≥5000cd/㎡(adjustable) | | Avg. Power Consumption | 360W/set |
| Drive Method | 1/32 Scan | | Max. Power Consumption | 1200W/㎡ |
| Driving IC | ICN2038S | | Service Access | Front maintenance / Back maintenance |
| Color Depth | 14bit | | IP Grade | Module face IP65,Back 65 |
| Refresh Rate(Hz) | ≥1920 | | Operating Temp/Humidity | -20℃～50℃, 10～90%RH |
| Frame Rate(Hz) | ≥60 | | Storage Temp/Humidity | -40℃～60℃, 10～90%RH |
| Brightness Adjustment | Manual/Automatic adjustment/Process control | | Lifetime(Normal Temp) | ≥50000H |
| Module Size(mm) | 160×160 | | System Controlle | ECSR |
| Module Resolution(Pix) | 64×64 | | Compliant Standard | CCC/CE |

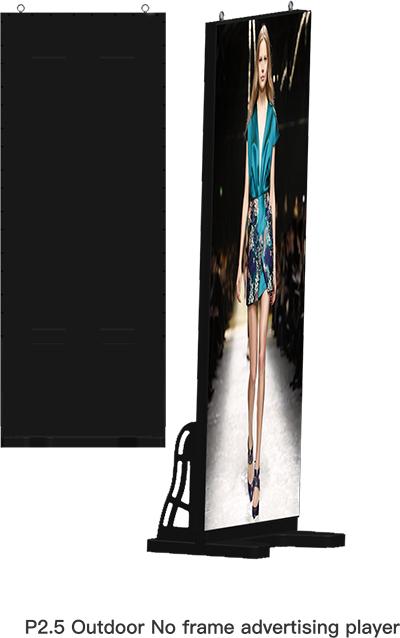

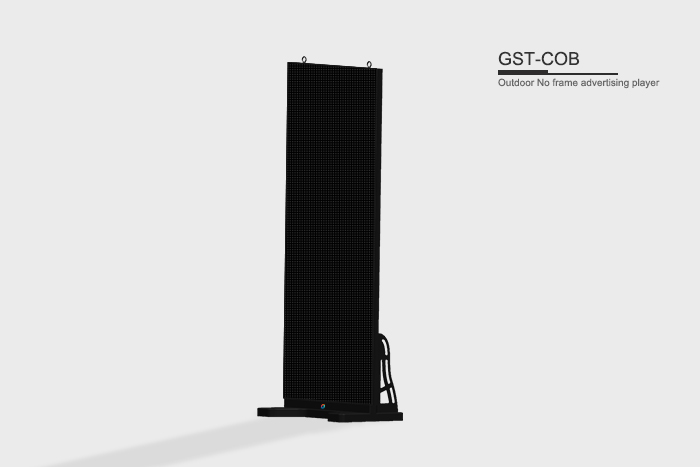

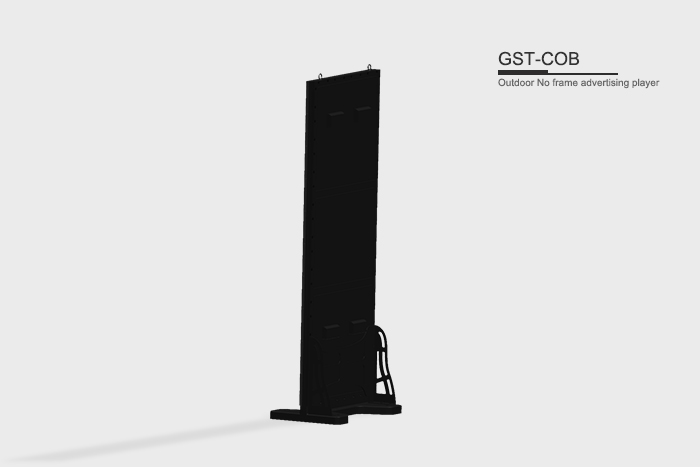

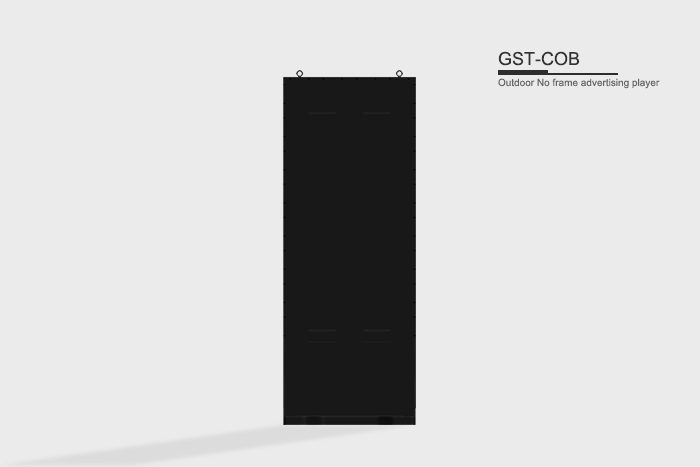

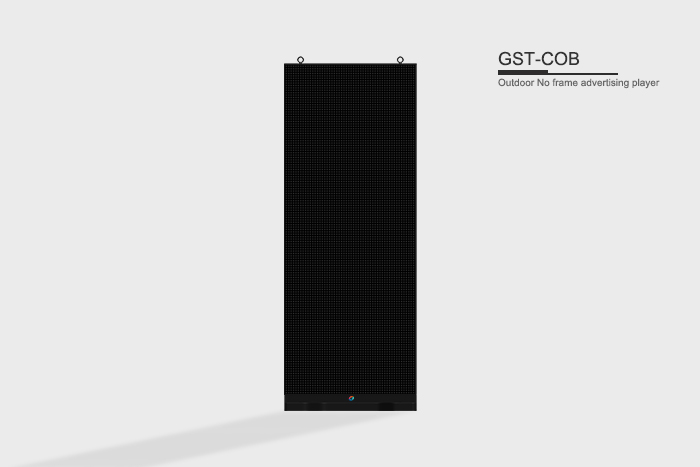

GST-COB P2.5 Outdoor No frame advertising player /
VIS has launched two new indoor/outdoor GST-COB no frame advertising player. Strict epoxy resin packaging technology makes screen smooth and resistant to collision.Fashionable and simple aluminum frame, matching with automobile baking paint, making whole screen more beautiful. Built-in control chip, plug and play, can be controlled by multiple platforms, or it can be controlled by the cloud seeding control platform after being connected with WiFi.

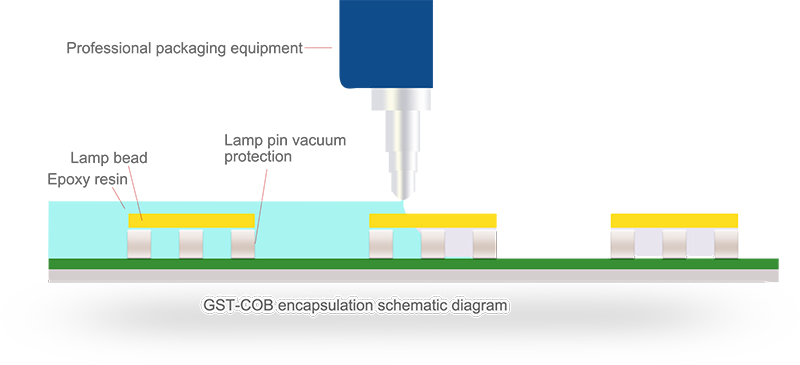

GST-COB surface treatment and mounting device technology/
Dignity series apply is not the traditional lamp bead patch technology, but the national patent gst-cob surface treatment and mounting device technology. The LED lamp is sealed with epoxy resin through special process, supplemented by professional surface treatment technology, the lamp bead is completely sealed with the gap between the circuit board and the LED lamp pin welding plate, forming the state of vacuum protection.

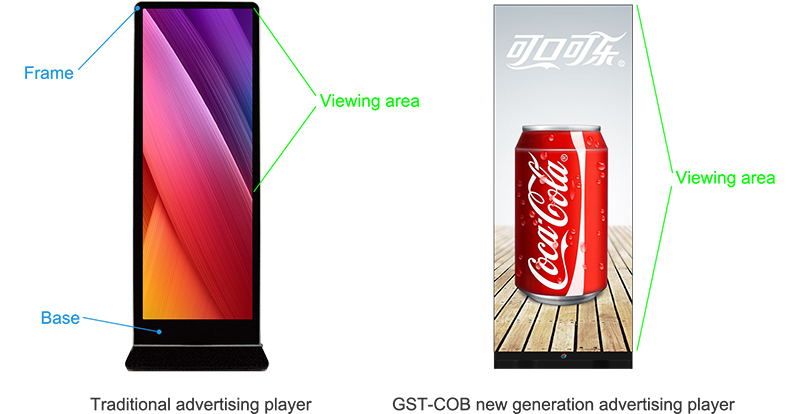

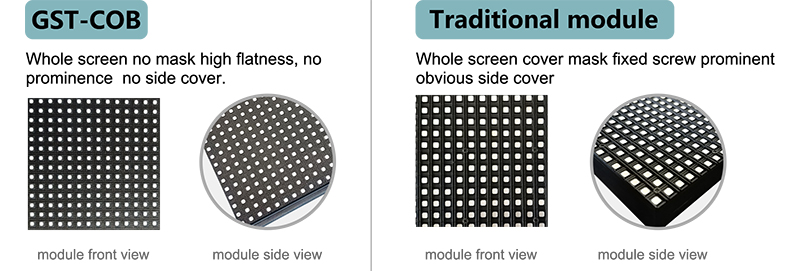

● GST-COB module and traditional module comparison
Product features /
This kind of advertising player is the first one that adopts GST-COB surface treatment and mounting device technology.GST-COB technology brings higher protection to screen surface, and can better cope with the situation with a large number of people.

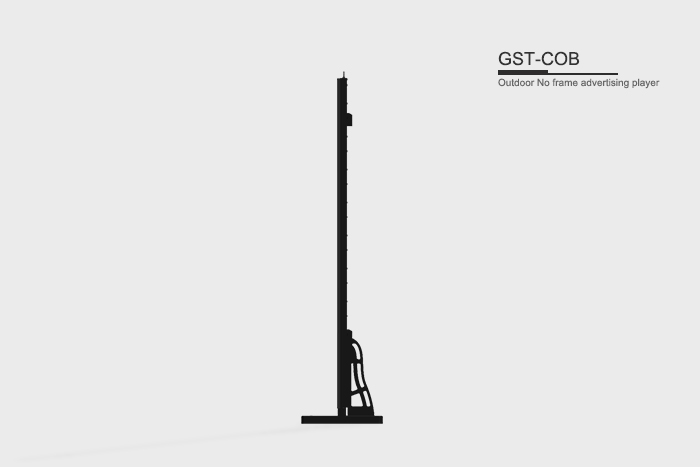

● Customized thin and light design body

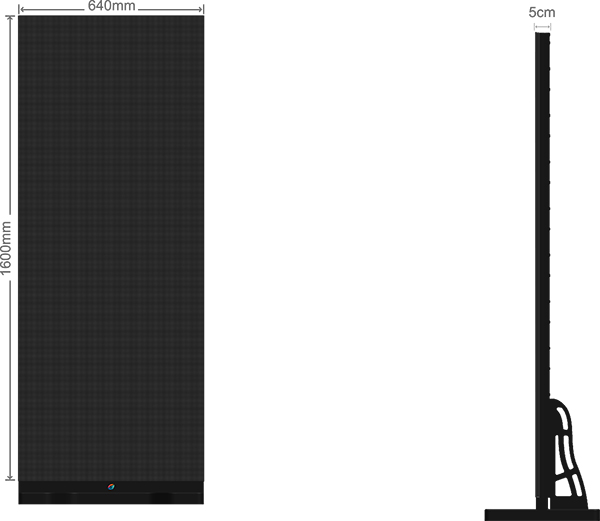

The super thin body design of this advertising player is only 5cm thick, about 1/4 of the regular advertising player.In addition, the body adopts all-aluminum frame and automobile baking paint,with a stylish and simple appearance design, the effective playing area of video is retained to the largest extent. The effective playing area of conventional model is up to 61 inches, other types of screen size can be customized according to the needs of the site.
● Frameless design
The compact Frameless display maximizes the viewable area of VIS advertising player, making it is the first industry's advertising player capable of combining multiple screens together freely.

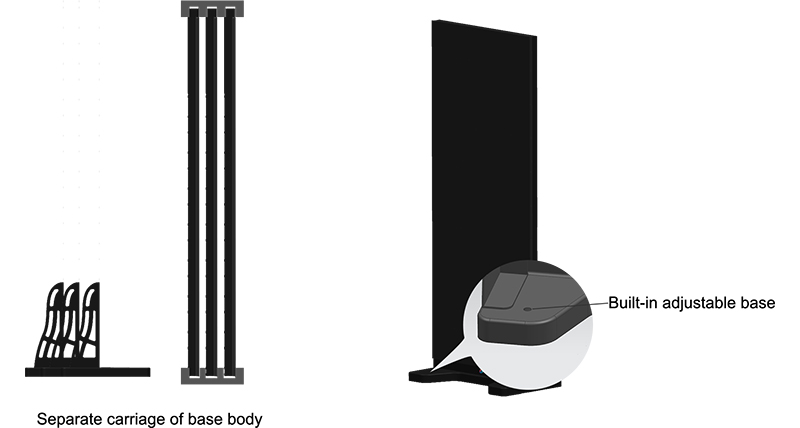

● Separate adjustable base design
New generation advertising player adopts separate adjustable base, which can separate the body and base when it’s not in use to reduce transportation space and save transportation cost.The base is built with adjustable landing feet, which can effectively cope with various topography and stabilize the body.
● It can be matched with touch control system
The smooth surface treatment and optical touch technology, together with the advantages of LED matte anti-blue light optical screen to eliminate Moorish lines and prevent backlight, make new generation advertising player become a success in touch control.

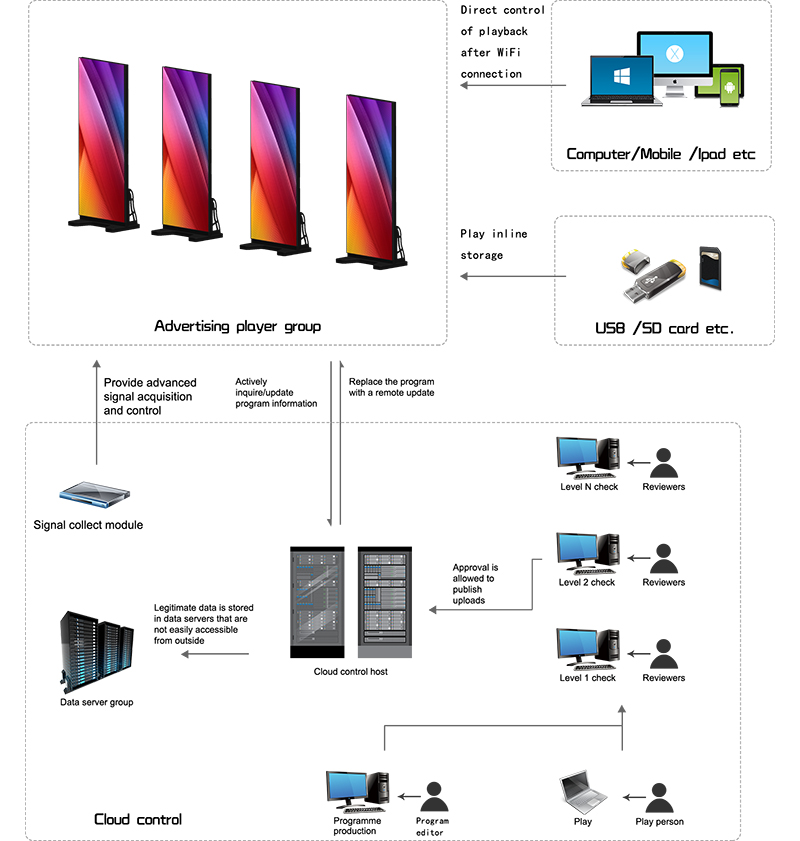

● Diversified play mode of control screen
Control screen playback for stationary and portable Windows, IOS and Android devices.
Zero setting, content stored in the built-in media player can be integrated played and managed by multiple screens through WIFI or USB update. After networking, the global screen can be pushed and monitored through the cloud control system.

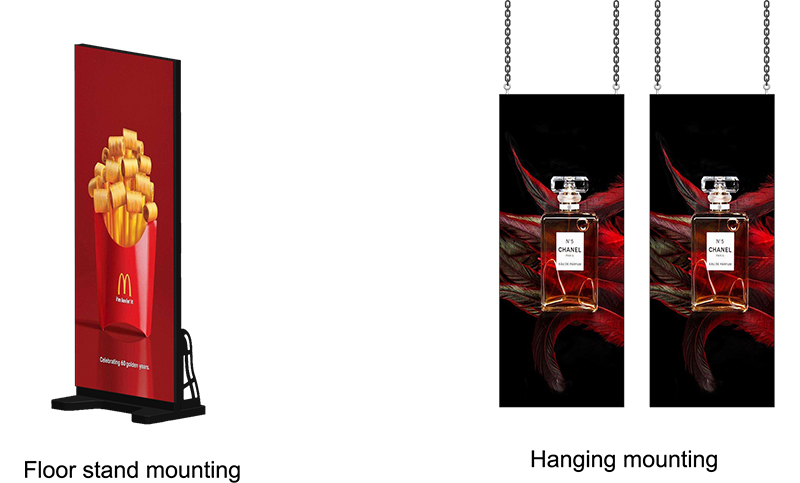

● Multiple installation
New generation of advertising player supports hanging, wall mounting, tilting installation, Floor stand mounting, creative installation and other installation methods.
● Multiple applications

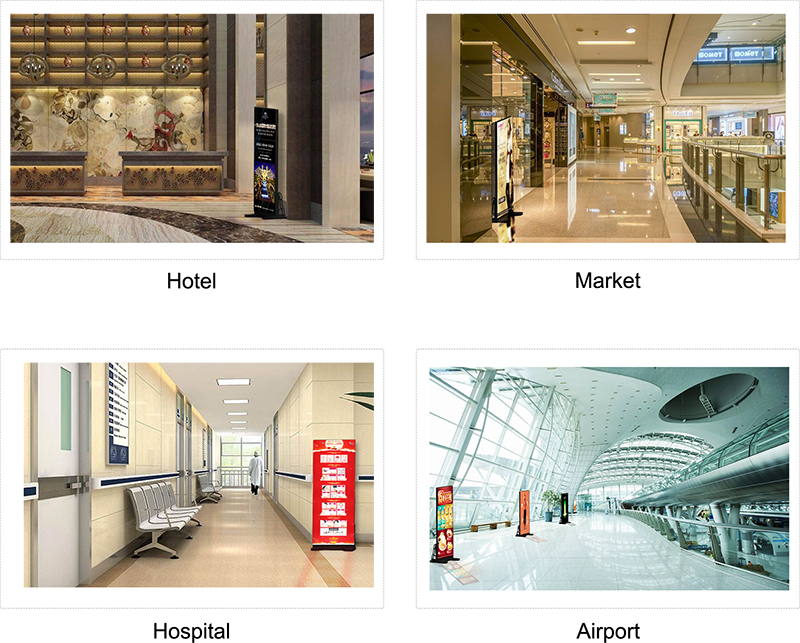

Applicable to shopping malls, conference halls, airports, stations, supermarkets, hospitals, hotels and other occasions.
